SP Series Solar Pumping Inverter

SP series solar pumping inverters are equipped with overall protection functions (self-checking functions for dry running, weak sunshine, full water level, etc.), motor soft start and speed control functions, with perfect function, easy operation and installation.

  • High efficiency and reliabbility
  • Built-in MPPT
  • Dry run function
  • Automatic switch power supply
  • Wake up and sleep automatically
  • Suit for various kinds of AC pumps

get a quote

Please enable JavaScript in your browser to complete this form.
Category:

Description

SP series solar pump inverter adopts MPPT(Maximum Power Point Tracking)and excellent motor drive technology to maximize the power output from solar panels. SP series inverters are compatible with both AC and DC input, and the AC output can be used for various kinds of normal AC pumps. When the solar power is not available, or the sunshine is not strong enough to drive the pump, the inverter could be automatic switched to single phase or three-phase AC input power, such as generator, or grid power. The system does not carry storage devices such as batteries. Therefore, it is recommended to pump water to the reservoir for future use, mainly used for water supply in remote areas without power supply or unstable power supply.

Features

Simple and Stable
Simple debugging and installation, no additional maintenance, stable, suitable for unattended remote desert

Full Protection
Built-in all-round safety protection and diagnosis mechanism, overvoltage, overcurrent, output phase loss, overload, undervoltage, short circuit, overheating, dry running under load, etc.

Auto Wake Up & Sleep
It can sleep when the light is weak in the evening, and wake up to work automatically when the light is strong in the morning, no human operation required

Hybrid Input
Grid and solar power supply can be input at the same time

Auto Switch
SP series inverter can judge the weak light condition and realize the automatic switching of DC/AC power supply to keep constant water pumping

Water Level Control
Water level control and alarm, dry run fcuntion, water full or shortage alarm, suitable for various liquid level sensors (including digital and analog sensors)

High Efficiency
Built-in high-precision photovoltaic array maximum power point tracking MPPT algorithm, fast tracking speed, high tracking efficiency. The new algorithm can help you maximize the water output

Single Phase Pump
SP 2S series can drive both three phase and single phase 220V pumps

LCD Keypad Optional
High-performance LED keypad comes standard, optional LCD keypad

LED keypad: Double row LED keypad for easy parameter monitoring, with parameter copy and upload function

LCD keypad: Completely display the description of each parameter, support multiple languages, with parameter copy and upload function

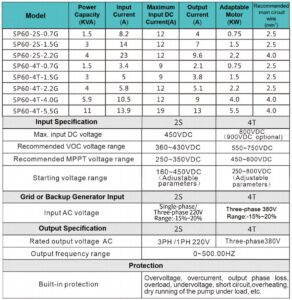

Specification

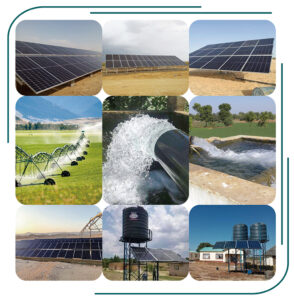

Application
